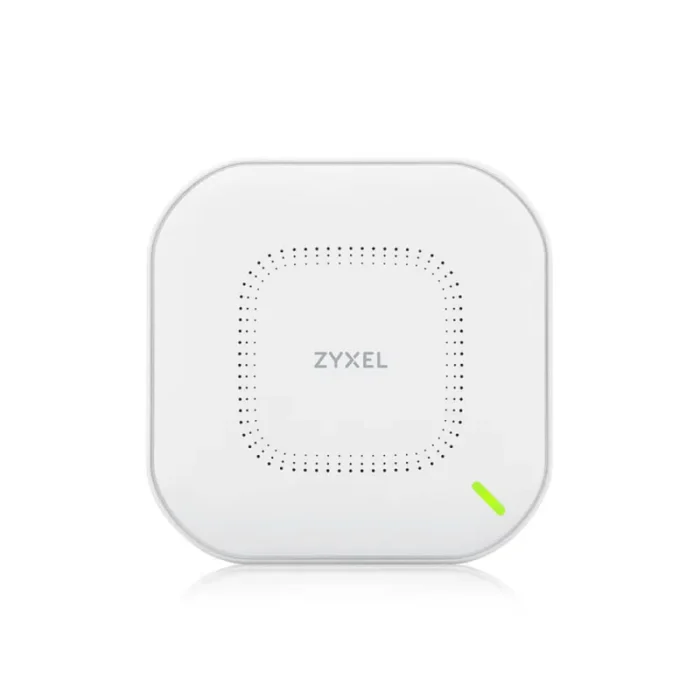

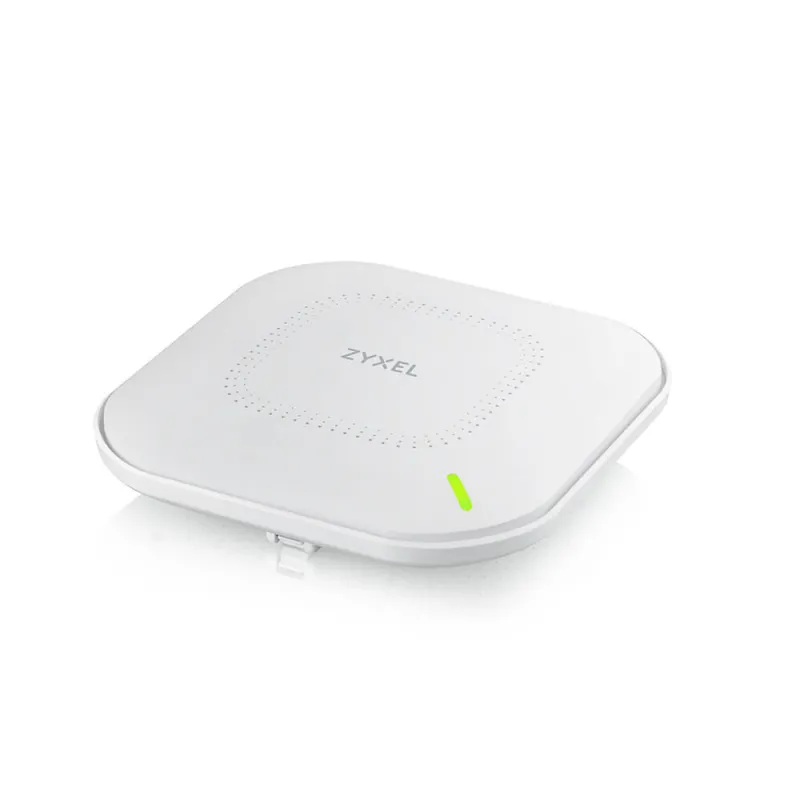

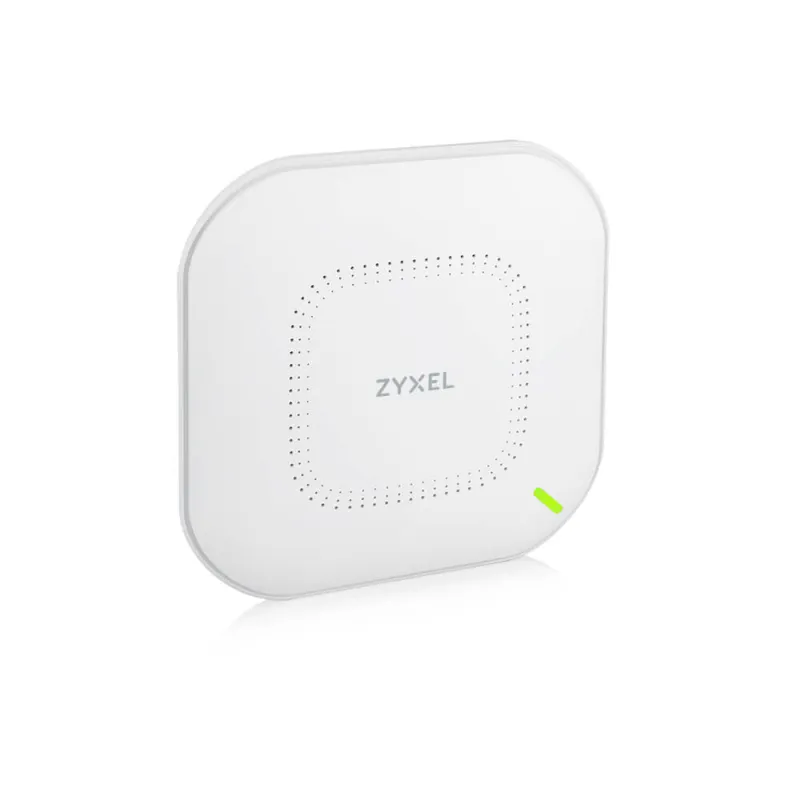

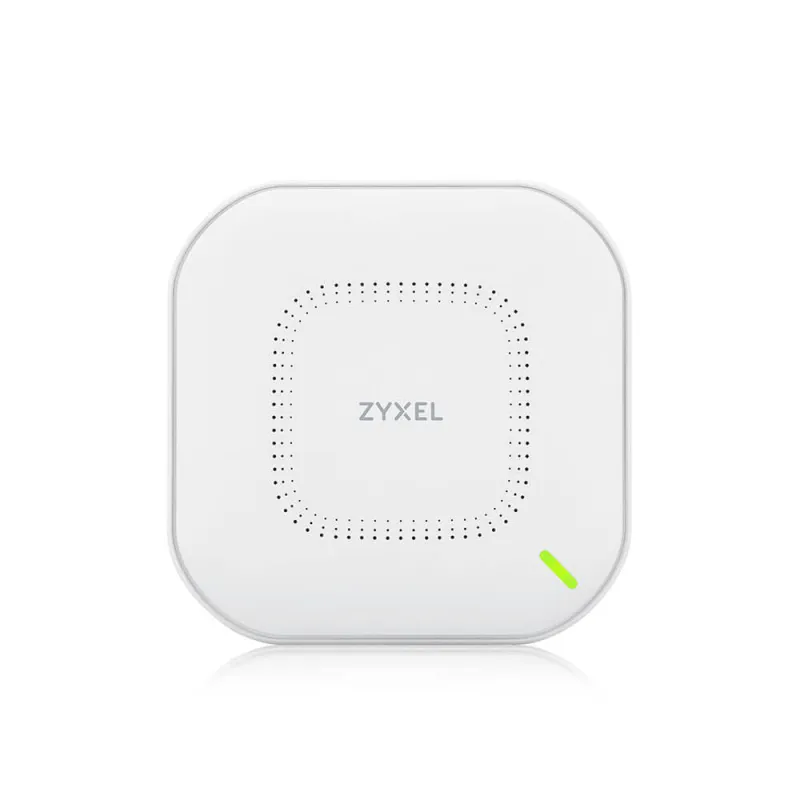

Zyxel NWA110AX-EU0103F wireless access point 1775 Mbit/s White Power over Ethernet (PoE)
- 2.4 GHz 575 Mbit/s
- 5 GHz 1200 Mbit/s
- Maximum data transfer rate: 1775 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
- SNMP, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA3
- Power over Ethernet (PoE)
- Internal
True WiFi 6
The NWA110AX is truly the next generation of wireless (WiFi 6) AP for businesses looking for a most economical upgrade path to 11ax. Its built-in 2nd Generation WiFi 6 (Qualcomm 802.11ax 2.0) chipset allows the access point to take advantage of the full range of WiFi 6 technologies including uplink OFDMA and MU-MIMO which can’t be found in earlier releases of 802.11ax products.
Built for Superior performance
The NWA110AX boasts an impressive quad-core processor to provide consistently smooth delivery to wireless clients. The NWA110AX is also built with premium power amplifiers and 4G/5G interface filters to deliver superior quality of service that make it one of the best in its class.
Simpler upgrade path
The NWA110AX has been designed to be highly efficient in PoE budget, allowing for an easy upgrade path for those wishing to experience all that WiFi 6 has to offer without the need to upgrade existing PoE+ switches
Manage it your way!
As it comes with support for NebulaFlex, Zyxel’s scalable, cloud-based management system, the NWA110AX can be managed via NCC (Nebula control Center) or simply operate alone (controller less). You can choose the way that is best suited to your needs.
| Features |
| Receiver sensitivity |
-101 dBm |
| Transmitting power (CE) |
20/22 dBm |
| Transmitting power (FCC) |
23 dBm |
| Band steering |
Yes |
| Wireless isolation |
Yes |
| VLAN support |
Yes |
| Fast roaming |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Channel bandwidth |
80 MHz |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Maximum data transfer rate (5 GHz) |
1200 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
575 Mbit/s |
| Maximum data transfer rate |
1775 Mbit/s |
| 5 GHz |
Yes |
| 2.4 GHz |
Yes |
| Security |
| Auto Wireless Distribution System (WDS) |
Yes |
| MAC address filtering |
Yes |
| Security algorithms |
SNMP, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA3 |
| Management features |
| Web-based management |
Yes |
| Ports & interfaces |
| DC-in jack |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
| Input current |
1.5 A |
| AC input voltage |
12 V |
| Power over Ethernet (PoE) |
Yes |
| Design |
| Product colour |
White |
| Placement |
Wall |
| Antenna |
| Antenna gain level (max) |
6 dBi |
| Antenna type |
Internal |
| Certificates |
| Certification |
FCC 15CFCC 15EETSI EN 300 328EN 301 893LP0002FCC 15BEN 301 489-1EN 301 489-17EN55022EN55024EN61000-3-2/-3EN60601-1-2BSMI CNS13438EN 60950-1IEC 60950-1BSMI CNS14336-1 |
| Weight & dimensions |
| Weight |
453 g |
| Height |
39 mm |
| Depth |
180 mm |
| Width |
180 mm |
| Packaging content |
| Mounting kit |
Yes |
| AC adapter included |
Yes |
| Quantity per pack |
3 pc(s) |
| Operational conditions |
| Storage relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-30 – 70 °C |
| Operating temperature (T-T) |
0 – 50 °C |
| Operating relative humidity (H-H) |
10 – 95% |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
