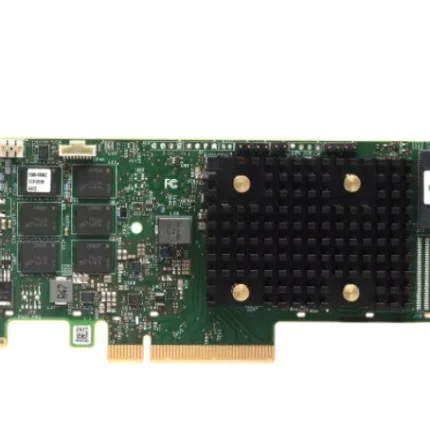

Lenovo 4Y37A72483 RAID controller PCI Express x8 3.0 12 Gbit/s
- Supported storage drive interfaces: SAS, Serial ATA
- Host interface: PCI Express x8
- RAID levels: 0, 1, 5, 6, 10, 50, 60
- 12 Gbit/s
- SSD support
- Number of devices supported: 8
The ThinkSystem RAID 9350 family of internal 12 Gbps SAS RAID controllers are high-performance low-cost RAID-on-chip (ROC) adapters that are designed and manufactured by Lenovo. These adapters support all major RAID levels including RAID-6 and RAID-60, and include support for Lenovo management tools.
This product guide provides essential presales information to understand the ThinkSystem RAID 9350-16i and 9350-8i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
| Ports & interfaces | |
|---|---|
| PCI Express slots version | 3.0 |
| Host interface | PCI Express x8 |
| Supported storage drive interfaces | SAS, Serial ATA |
| Performance | |
|---|---|
| Certification | FCC Part 15 Class A Australia/New Zealand (AS/NZS 3548) Canada (ICES-003 Class B) Europe (EN55032/EN55024) Japan VCCI Korea KCC RoHS compliant EN/IEC/UL 60950 USA (FCC 47 CFR part 15 Subpart B class B) |
| Hot-swap | Yes |
| S.M.A.R.T. support | Yes |
| Number of devices supported | 8 |
| JBOD function | Yes |
| Chipset | Microchip Luxor ROC PM8204 |
| SSD support | Yes |
| Data transfer rate | 12 Gbit/s |
| RAID Level Migration | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 – 80% |
| Operating temperature (T-T) | 0 – 55 °C |
| Weight & dimensions | |
|---|---|
| Height | 64 mm |
| Width | 167 mm |
